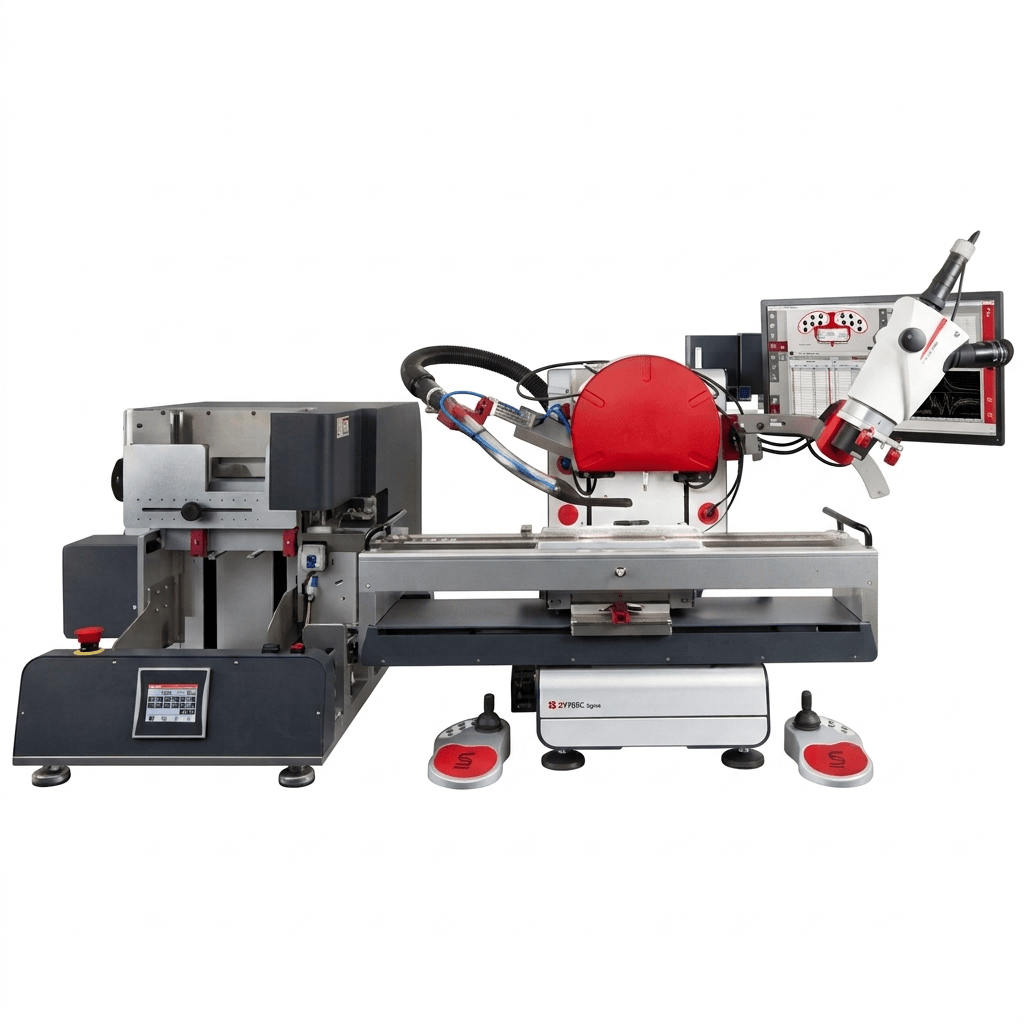

The Sigma MAG comes with an independent lead frame (un)loader for hands-free bond testing, The magazine handler is compatible with OHT and AGV and allows top and front-loading of multiple types of:

• Lead frames
• Cassettes
• Magazines
• PCBs
• Flex
• Boat carriers

Slot and Device Selection

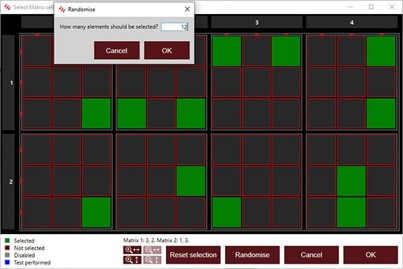

Matrix programming allows you to test a variety of position types, including repeating positions, like:

• Rows and columns
• Specific or randomized locations
• Predefined test location from remote protocols driven by SECS/GEM functionality and more

Automatic Width Adjustment

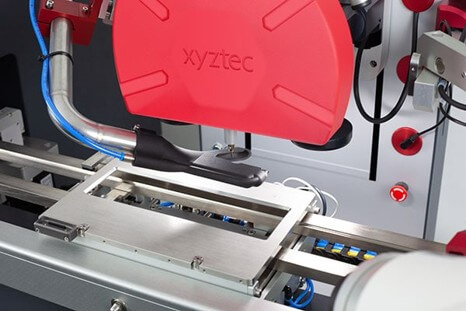

Because of its extended 600 mm X stage, the Sigma MAG can accommodate lead frames up to 100×240 mm. To ensure fast, simple, and repeatable changeovers, you can use automatic width adjustment.
Length up to 300 mm possible in case of single camera.

Waffle Tray Loader (pick & place)

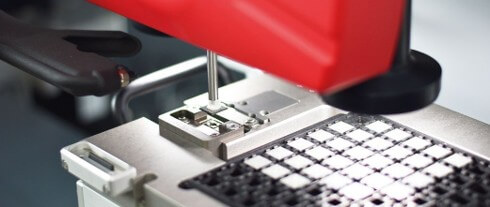

Quickly test whole waffle trays of samples without operator intervention. You can program a waffle tray loader on your Sigma MAG to pick the sample from the waffle tray and place the sample into the clamper and vice versa.

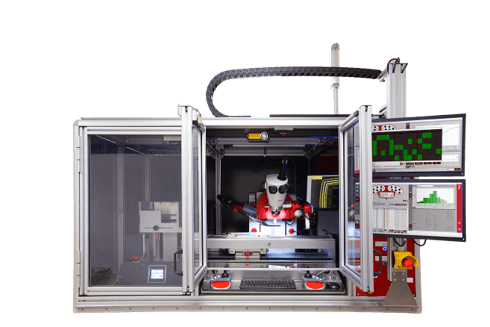

For SEMI S2, combine a Sigma MAG with a safety cabinet
This option guarantees extra safety during automatic bond testing and protects the operator from moving parts. The cabinet fulfills the standards for safety and ergonomics, and it keeps the test debris away to ensure a clean working environment.

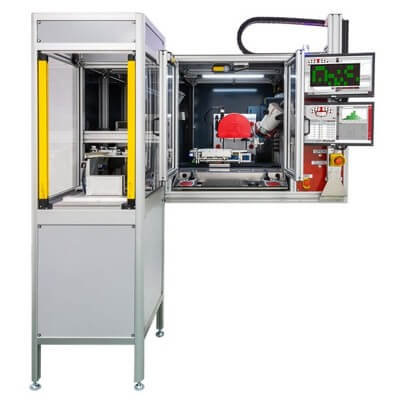

Integrate a Sigma MAG in your product line
The Loadport is an extension to the Sigma MAG for automatic (un)loading of magazines up to 100×240 mm without operator intervention. It communicates through SEMI E84 and allows top- and front loading by:

• Over Head Transport (OHT)
• Automated Guided Vehicle (AGV)
• Or manually

Magazine buffering makes lead frame testing even more efficient. It is possible to load multiple magazines to keep the system running and ensure no down-time on the bondtester.
