COMET YXLON FF35 CT

COMET YXLON FF35 CT

Discover the Next Generation of Electronics Inspection.
COMET YXLON offers a broad range of cutting-edge X-ray and CT products designed to support all your industrial inspection needs. We develop specialized systems for use in areas such as aerospace, automotive, electronics, metrology applications and many more. Whether your component is measured in micrometers or meters, there’s an COMET YXLON system that fits.

Industrial computed tomography system

Flexible inspection of very small to medium-sized parts

The Comet Yxlon FF35 CT, FF35 CT Metrology, and FF35 CT SEMI cover an extraordinary range of applications. Capabilities include improved material testing in the R&D department, optimization of process control and small series inspection as well as various scientific applications. The dual X-ray tube set-up enables the high-resolution CT system to significantly expand quality assurance and research possibilities in the automotive, electronics, aviation, and material science industries.

  • Single or dual tube configuration for highest versatility in laboratory micro-CT applications
  • Switch between micro-focus and nano-focus tubes in seconds with the touch of a single button
  • Accurate results due to granite-based manipulation and air conditioning
  • Application flexibility due to various CT trajectories and FoV extensions via software platform Geminy
  • Optional metrology version with an MPESD = 5.9 µm + L/75 [L in mm]
  • Available as FF35 CT SEMI version in compliance with semiconductor market standards
  • Maximum sample weight now up to 50kg – Also available as an upgrade
  • NEW! Low maintenance 160kV nano-focus tube for the most challenging high-resolution scanning tasks
  • NEW! The 225 kV X-ray tube is now available with a High Density Power (HDP) Target. More power density, faster inspection and improved resolution

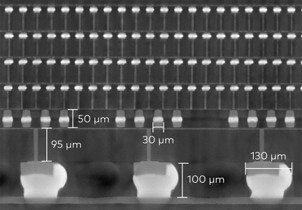

CT scan of a GPU: 1.4 mm x 1.4 mm field of view, 213 x magnification, showing HBM bumps, TSVs, μ bumps and C4 bumps.

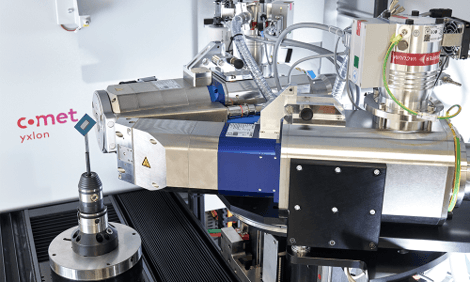

High-power 225 kV micro-focus tube and 190 kV nano-focus transmission tube – the perfect combination

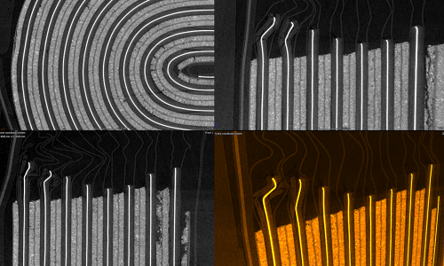

A CT scan of a battery



Which items can be inspected with the FF35 CT?

  • Electronic components incl. SMD and semiconductor packages
  • Wafer coupons and dies
  • Microsystems (MEMS, MOEMS)
  • Products involving new materials or new manufacturing methods, e.g., additively manufactured components, fiber-reinforced plastics
  • Battery cells and modules
  • Injection molded plastics
  • Medical objects, e.g., cannulas
  • Light-alloy castings
  • Geological, paleontological and biological samples



Which applications is the FF35 CT designed for?

  • Quality assurance, material analysis, and research
  • Failure and structure analysis
  • Assembly checking
  • Inspection of small serial productions
  • Process control
  • Digitization
  • Segmentation
